Water, Gas and Utility Pipe in Bangladesh
GI pipe for supply lines, plus spiral SSAW and LSAW pipe for transmission, hydrostatically tested every batch.
Gram Bangla Tubes Ltd. (GBTL) makes steel pipe for water supply, gas and utility networks in Bangladesh. Hot dip galvanized GI pipe covers supply and service lines from 12 to 300 mm OD. For transmission mains, GBTL makes spiral SSAW pipe up to 3600 mm OD and LSAW pipe from 300 to 2500 mm OD.
Every batch goes through in-house hydrostatic, weld, dimensional and mechanical testing. Batches are marked for traceability, and mill test certificates are available on request. Standard GI pipe comes through district dealers, with bulk orders from 20 MT supplied direct by the mill. Spiral and LSAW pipe is made to project specification and quoted per project.
Buyer guide
What to specify

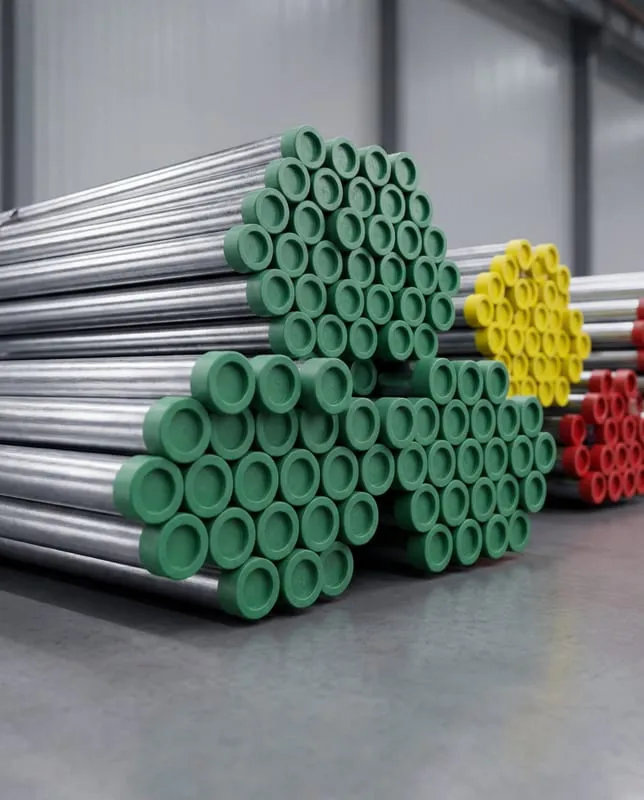

GI pipe for water supply lines
GI pipe is hot dip galvanized after forming, so zinc coats the bore as well as the outside. The inside coating protects the surface that carries water. The GI range covers 12 to 300 mm OD in 1.0 to 8.0 mm wall. Order small quantities of GI pipe through your local GBTL dealer. For 20 MT or more, GBTL supplies GI pipe straight from the mill.

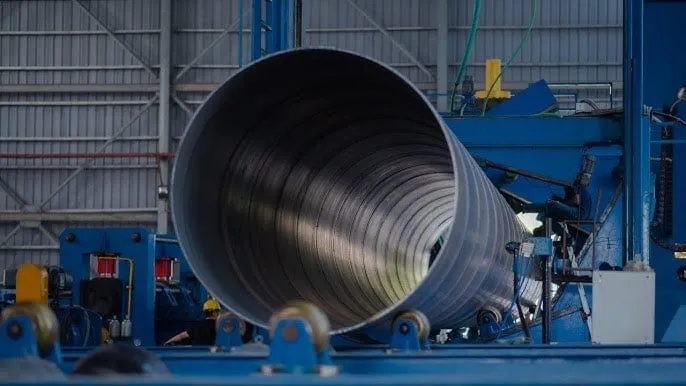

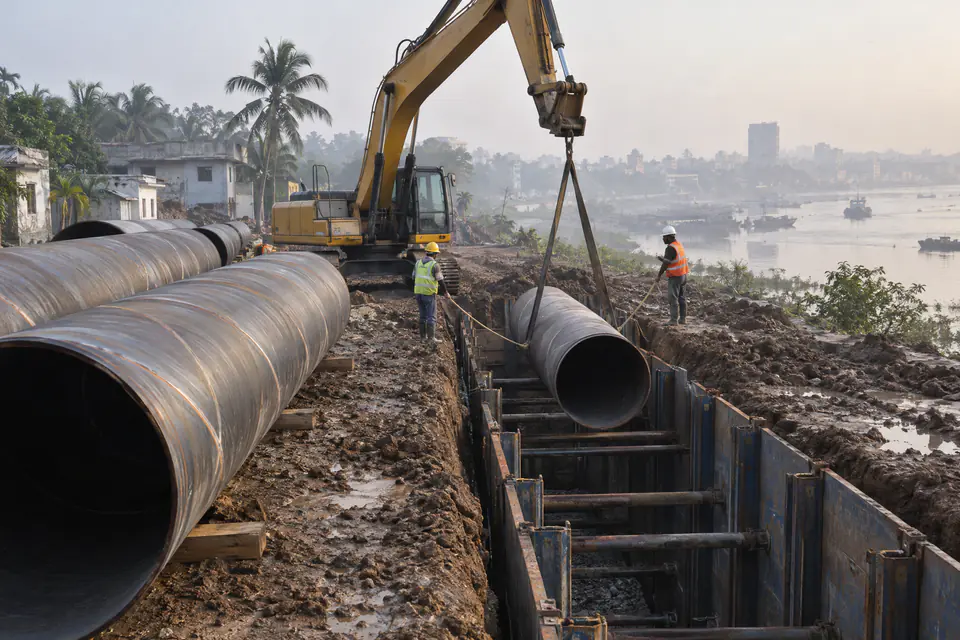

Spiral SSAW pipe for water transmission mains
GBTL is the only SSAW spiral pipe mill in Bangladesh. Diameters run from 273 to 3600 mm OD, in wall thickness from 3.0 to 25.0 mm. These large diameters suit bulk water transmission mains. Each order is made to your specification for diameter, wall and length. List any coating or lining requirement in your enquiry, with the quantity in MT and the delivery district.

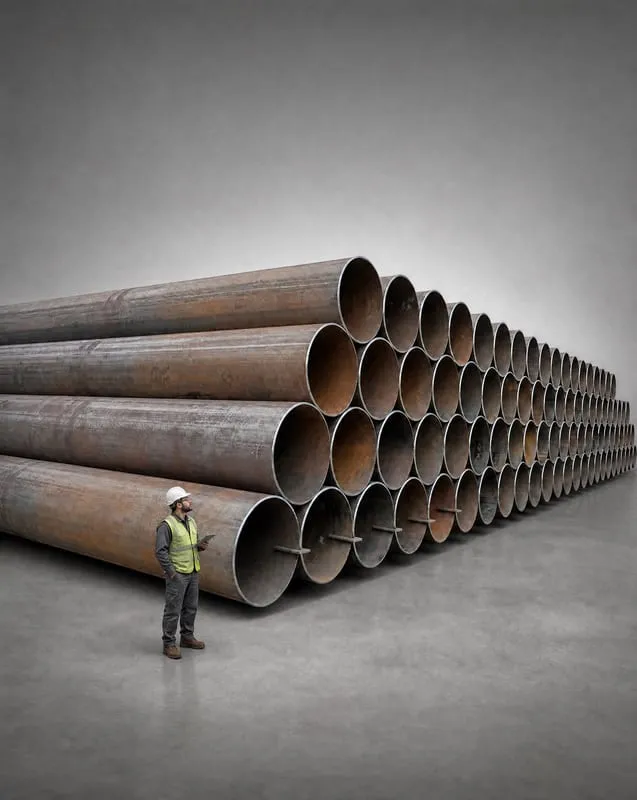

LSAW pipe for gas and water transmission
LSAW pipe has one straight seam, made by submerged arc welding along its length. GBTL makes LSAW pipe from 300 to 2500 mm OD, in 3.0 to 17.0 mm wall. The LSAW range serves gas and water transmission projects that are built to a project specification. Send that specification, including steel grade and coating, for review on quote. GBTL LSAW pipe was also used for foundation piling on the Padma Multipurpose Bridge.
Testing, traceability and documents
Hydrostatic testing is done in house on every batch, along with weld, dimensional and mechanical checks. Each batch carries a mark for traceability. Mill test certificates are supplied on request, so list them in your enquiry. GBTL holds ISO 9001:2015 quality management certification and is BSTI and BUET certified. Tell GBTL which documents your client or consultant needs, so they can be confirmed on quote.
Products
Water, gas and utilities products
GI Pipe
- Size
- 12 to 300 mm OD
- Wall
- 1.0 to 8.0 mm
- Finish
- Hot dip galvanized (GI)
Spiral Pipe (SSAW)
- Size
- 273 to 3600 mm OD
- Wall
- 3.0 to 25.0 mm
LSAW Steel Pipe
- Size
- 300 to 2500 mm OD
- Wall
- 3.0 to 17.0 mm
Minimum order quantity
| Order type | Minimum | Why |
|---|---|---|
| Standard GI pipe Buy from your district dealer. Bulk orders from 20 MT come direct from the mill. | Through dealers | Buy from your district dealer. Bulk orders from 20 MT come direct from the mill. |
| Spiral and LSAW pipe Made to project specification. Quantity is agreed on quote. | On quote | Made to project specification. Quantity is agreed on quote. |
Infrastructure references
GBTL pipe on national infrastructure
Padma Multipurpose Bridge
Large diameter spiral (SSAW) and LSAW pipe for foundation piling on the 6.15 km road and rail bridge.
Water, gas and utilities questions
Which pipe is used for water supply lines in Bangladesh?
GI pipe suits water supply lines in Bangladesh because it is hot dip galvanized, with zinc inside and outside. GBTL makes GI pipe from 12 to 300 mm OD in 1.0 to 8.0 mm wall. Standard GI sizes are sold through GBTL district dealers.
What sizes of spiral steel pipe are available in Bangladesh?
Spiral SSAW steel pipe is available in Bangladesh from GBTL in 273 to 3600 mm OD. GBTL spiral pipe walls run from 3.0 to 25.0 mm. Quantity and specification for spiral pipe are agreed on quote.
What is the difference between spiral SSAW pipe and LSAW pipe?
Spiral SSAW pipe is welded along a helical seam, while LSAW pipe is welded along one straight seam. Both types are submerged arc welded. At GBTL, spiral pipe runs from 273 to 3600 mm OD and LSAW pipe from 300 to 2500 mm OD.
Is GBTL pipe hydrostatically tested, and are mill test certificates available?
Yes, GBTL runs in-house hydrostatic tests on every batch of pipe, along with weld, dimensional and mechanical tests. GBTL marks each batch for traceability. Mill test certificates for GBTL pipe are available on request with your order.
Does GBTL make pipe for gas lines in Bangladesh?
GBTL makes LSAW pipe from 300 to 2500 mm OD for gas and water transmission projects in Bangladesh. Each LSAW order is built to the project specification. The steel grade and coating for a gas project are reviewed against that specification on quote.
How do I order spiral or LSAW pipe for a water or gas project?
Spiral SSAW and LSAW pipe from GBTL is ordered on quote. Send the outside diameter, wall thickness, quantity in MT and delivery district with your enquiry. GBTL delivers factory direct across Bangladesh by district. Call +88 01907 084 261 or email info@grambanglatube.com.
Request a quote
Request a quote for your pipeline project
Send the sizes, quantity and delivery district on WhatsApp or by phone. The GBTL sales team replies with a firm price and delivery plan.
- Quantities in MT or pieces.
- Delivery to your site anywhere in Bangladesh, by district.
- Mill test certificates on request.
Prefer to talk? Call +88 01907 084 261, Saturday to Thursday, 9:00 to 18:00.
Send your request on WhatsApp
The message below is filled in for you. Add the quantity and your delivery district, then send.
Hi GBTL, quote request for water, gas and utility pipe, quantity ____ MT, delivery to ____.
Or email info@grambanglatube.com with the sizes, quantity and delivery district.
